Thermal Management System and Battery Packs

Calogy’s Unique Technology

Uni.T™ : Thermal Management

Re-Engineered

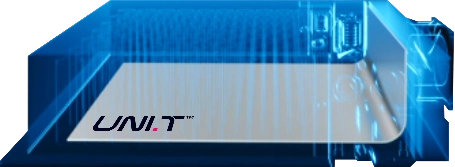

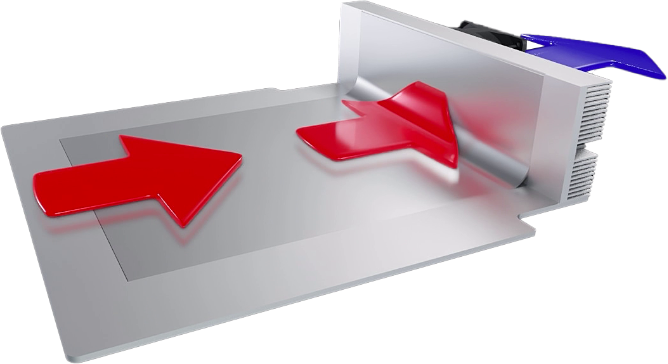

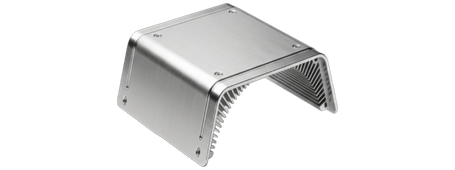

Taking the form of a metallic plate, Uni.T™ leverages the thermal performance of a liquid-vapour phase change cycle to transfer heat efficiently from a heat source to a dissipation site. Designed to work in virtually any thermal management system, a Uni.T™ component can be easily customized to fit the specific size, capacity, and other specialized needs of your application — without compromising performance.

Meet

Uni.T

Bitmap 1
Group 10 1

Uni.T™ transfers heat as if it were made of a super thermally conductive material, with equivalent thermal conductivity from 2000 to 40 000 W/m•K, depending on its design. That’s up to 100 times the conductivity of copper. Dare Us.

OUR PROCESS

Phase 1

Thermal study & sizing

Because every application is unique, so is its thermal management solution. We start by understanding your application to design a Uni.T™ for you. We can perform analytical and numerical thermal studies to help define the specifications and predict Uni.T™’s impact on your system’s thermal behaviour. Want to compare it to other thermal management solutions? We can predict those too.

Phase 2

Prototyping

After validating the benefits of Uni.T™, we launch a prototyping phase to collect test data and refine the design of the thermal management system.

Phase 3

Mass production

Following a validation and design freeze, pre-preproduction of the custom Uni.T™ begins, leading to the start of production in volume.

Applications

  • Lithium Ion Batteries
  • Power Electronics
  • Motors & Drives
  • Fuel Cells
  • Data Centers
Lithium Ion Batteries

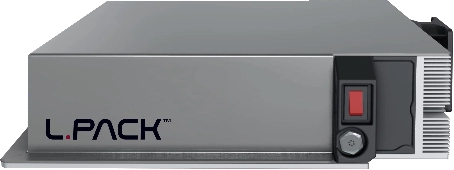

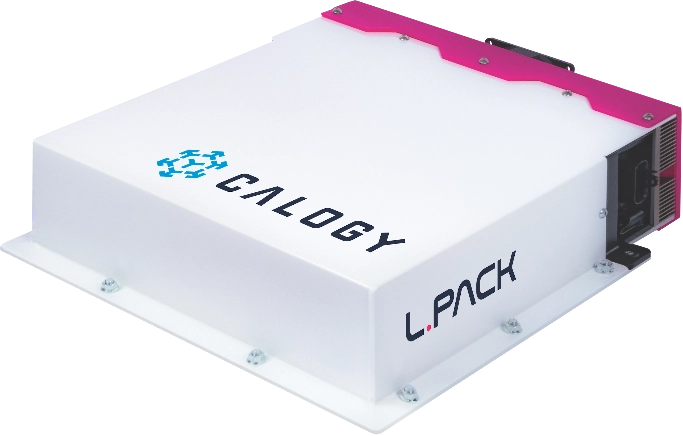

L.Pack™ Battery System

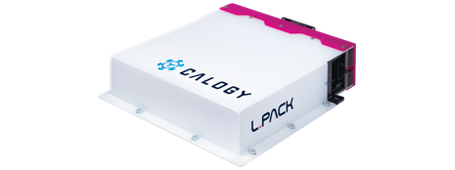

Modular, ranging from 2-32 kWh and 48-450 Volts, the L.Pack™ battery system is ready to meet the demands of any application. Integrating a complete thermal management system built on Uni.T™ and proprietary BMS, L.Pack™ offers a complete battery solution that is easy to integrate, fast-charging and high-power, while putting safety first. Accelerate your development and go-to-market strategy without risk with L.Pack™.

Meet

L.PACK

Bitmap 3

Technical Features

Group 9 1

Fully Integrated Thermal Management

Amazingly, high performance is achieved with simple air cooling, thanks to Uni.T™, Calogy’s proprietary technology.

Group 9 1

Easy to Integrate

Can be integrated directly into the vehicle frame to minimize design modifications, electrical turn-key system (integrated power disconnection system) and no need for additional components.

Group 9 1

Modular

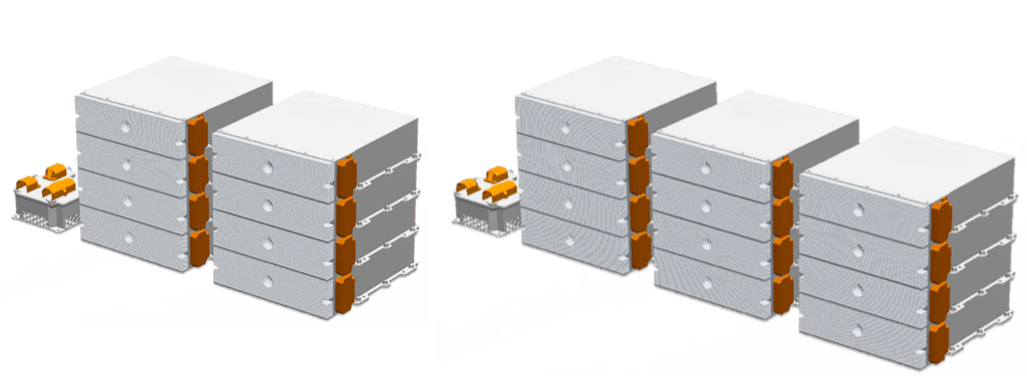

LEGO block approach in series or in parallel to meet your voltage and capacity needs.

Group 9 1

Robust

Made to last (vibration, shock, short-circuit resistant according to UN38.3), dust and waterproof.

Group 9 1

High Energy and Power Density

Offering over 150 Wh/kg and 400 W/kg.

Group 9 1

Fast Charging and Regeneration

Complete charge in less than 1 h.

Specifications*

Energy

2–32 kWh

Voltage

48–384 V nominal

Current

Up to 400A peak

Charge current

Up to 1C

Thermal management

Integrated and autonomous-based

Density

150 Wh/kg

Certified

UN38.3 certified

*Subject to change

COMPLETE BATTERY

SOLUTION

Group 8
Rectangle 5

Applications

  • Electric Power Take Off (ePTO)Hydraulics, Dumps, Bucket trucks, etc.
  • Auxiliary Power Units(APUs)Reefers, welding equipment
  • PropulsionHybrid or last mile delivery vehicles.
  • Industrial Equipment AGVs, Compact equipment, Scissor lifts
  • All terrain vehicles Recreational, Personal or Sport ATVS
ePTO
